Offshore
Crane & Winch
Monitoring
Engineered for the harshest offshore environments. RaycoWylie RCI systems meet Zone 1 and Zone 2 hazardous area protection requirements — giving operators every critical parameter at a glance.
Built for
Offshore Demands
The RaycoWylie Rated Capacity Indicators (RCI) line is specifically designed to meet the harsh offshore environment. Suitable for hazardous areas where Zone 1 or Zone 2 protection is required, its integrated systems ensure operators cannot miss any important information — all parameters shown at a glance.
In addition to the standard packages, the RaycoWylie RCI can be fully customized to customers' specific requirements such as oil pressure, RPM, hours and much more. Based on its extensive expertise, RaycoWylie can provide a custom solution for your most demanding requirements.
Request a Custom Quote →RCI Display Systems
A complete offshore RCI product line — from the flagship i4650 touch screen to compact economic units — all IP67-rated and built for the most demanding hazardous environments.
Offshore RCI — Comparative Chart
Full feature comparison across the offshore RCI product line.

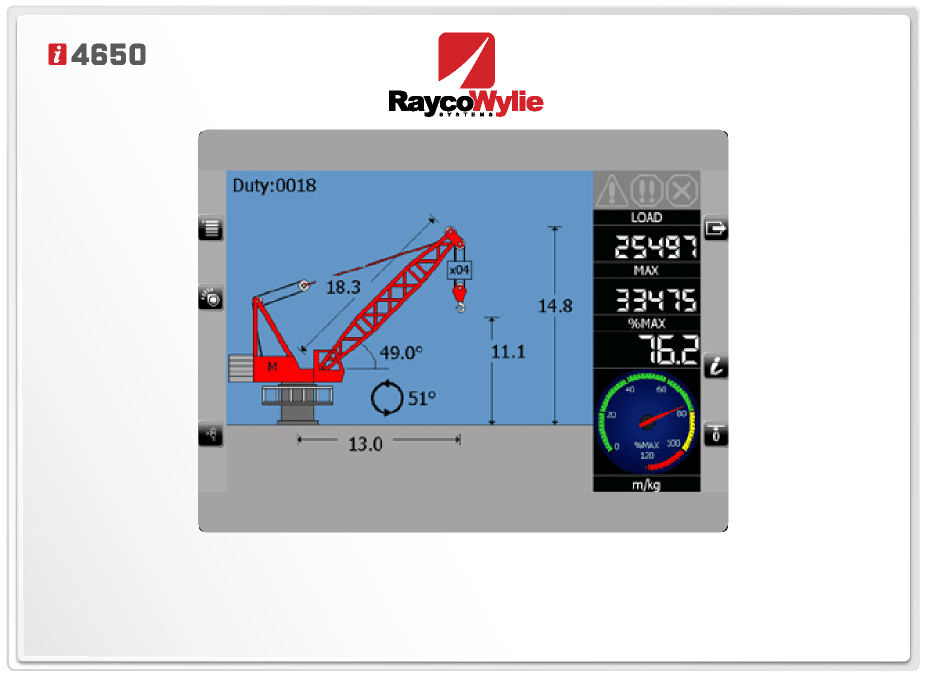

| Feature / Model | i4650 15" |
i4650 12" |

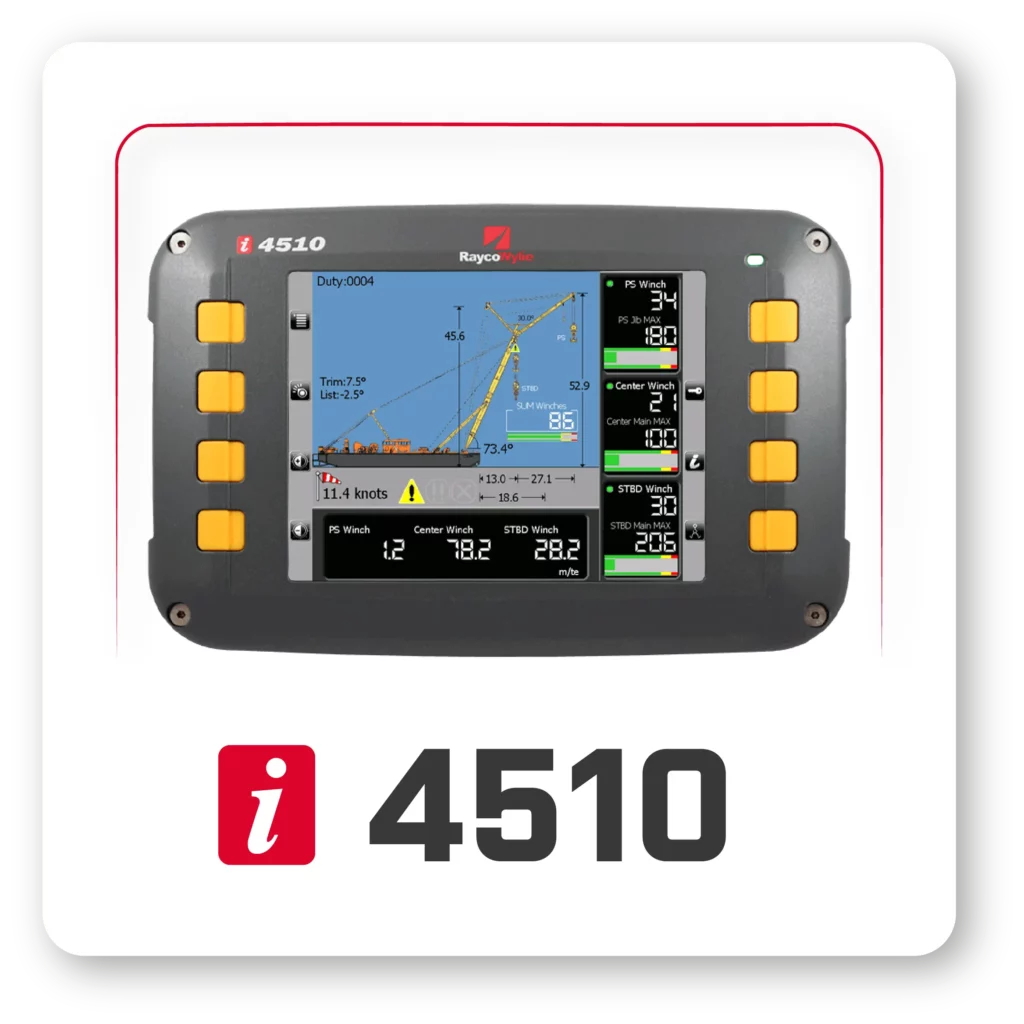

i4510 10" |
i4507 7" |
i4300 4.3" |
|---|---|---|---|---|---|
| Display & Zone | |||||
| Hazardous Zone | ● | ● | |||
| Safe Cab | ● | ● | ● | ||
| IP Rating | IP66/IP54 | IP66/IP54 | IP67 | IP67 | IP67 |
| Information Displayed | |||||
| Load on hook | ● | ● | ● | ● | ● |
| Safe working load | ● | ● | ● | ● | ● |
| % of safe working load | ● | ● | ● | ● | ● |
| Angle / Length / Radius | ● | ● | ● | ● | ● |
| Anti-two-block | ● | ● | ● | ● | ● |
| Graphical display / Bar graph | ● | ● | ● | ● | ● |
| Audible and visual alarms | ● | ● | ● | ● | ● |
| Self-diagnostic | ● | ● | ● | ● | ● |
| Boom height / Slew indication | ● | ● | ● | ● | |
| Available Options | |||||
| Wind speed indication | ● | ● | ● | ● | ● |
| Data logger / Reporting | ● | ● | ● | ● | ● |
| Hook height indication | ● | ● | ● | ● | |
| Work area definition | ● | ● | ● | ● | |
| Camera — Boom tip / Hoist | ● | ● | ● | ● | |
| Lubricant system | ● | ● | ● | ||
Advanced Offshore Technologies
RaycoWylie's offshore offering extends well beyond RCI displays — a full ecosystem of sensors, telemetry, camera systems, and automation tailored for the most demanding maritime environments.
At Sea Hercules we have been installing the RaycoWylie Rated Capacity Indicator on our new built offshore cranes since 1996. The RaycoWylie system was installed on the Baker Marine cranes models BMC 900, BMC 1600, BMC 2250 and are installed now on our latest models SH2000-S, SH2000-SE, SH2000-LW, SH2000-M. Sea Hercules and RaycoWylie has developed a great partnership over the last 30 years, providing us with a very reliable product and an around-the-clock service in the region.
880/890 Load Links & Shackles
Wired and wireless models in a wide range of capacities — all engineered for reliability in harsh offshore conditions.
Both wired and wireless models. Capacities from 6.5 te to 500 te. High grade aluminium. Designed for ease of installation and transportation. Heavy duty transport cases available.
Both wired and wireless models. Capacities from 25 te to 2000 te. Load shackle pins in 17-4 stainless steel. Heavy duty transport cases for shackles up to 55 te.
Capacities from 6.5 te to 35 te. Load pins in 17-4 stainless steel. Use with appropriate bobbin for load accuracy. Heavy duty transport cases available.
Full range of spare components including displays, Ex displays, termination units, angle sensors, load links, ATB switches, junction boxes, load pins, dynamometers, cable glands, and wind sensors.
RAYCOnnect
RAYCOnnect provides relevant and accurate information to optimize maintenance and operation of your equipment. Its customizable dashboard presents critical information to different types of organizations to facilitate management and efficiency.
- Crane running hours
- Safe working load & load
- Angle, radius, extension
- Boom tip wind speed
- XY chassis angle
- Slew encoder & data logger
- Hook height & rope payout
- Safety critical alarm notifications
- Schedule or event based maintenance
- Preventive maintenance planning
- Reduce downtime
- Increase safety
- Data logger & crane hours
- Time stamp events
- Crane power on time
- Lift information
- A2B, overload & bypass record
- GPS location tracking
- Remote diagnostics
- Remote software updates
- Upgrade loadcharts & calibrations
- API for fleet management (CRM, ERP)
- Branded login page available
Our Commitment
to Quality
Founded in 1979, Rayco Electronic System Limited has been engineering heavy machinery instrumentation for over 47 years — trusted by customers across five continents.
Whether a crane has a 1 tonne or 5,000 tonne capacity, RaycoWylie engineers deliver the right instrumentation — with expertise to produce customized equipment for any unique application.
RaycoWylie engineers continuously use the latest technologies to ensure products are the most versatile, reliable and cost effective available in the global marketplace.
Every RaycoWylie product must endure a complete and thorough test program before it is dispatched — from bench testing of all assemblies through to full system validation.
Every new product or addition is thoroughly tested through exhaustive field trials before it is released for sale to customers — ensuring real-world reliability from day one.
Download Our Catalogs
Take a closer look at the full features and specifications our products have to offer — from the i4500 series to wired and wireless wind speed indicators and complete offshore RCI solutions.
PRODUCTS CATALOG
Download our catalogs and take a better look at the features and specifications our products have to offer. From the i4500 series to wired and wireless wind speed indicators, RaycoWylie have the perfect range of reliable monitoring systems to suit you and your cranes.
